Formwork Sleeves V2A DW 15
Bridge Construction:
for ledge console suspension our Anchor Sleeves V2A / DW15
The economic and reliable fastening for ledge consoles or timbers. At site concrete or prefabricated units, suitable for exposed concrete construction. By application of high grade steel V2A 1.4301
non corrosive and resistant against concrete acid the anchorage is employable long termed f.i. for subsequently maintenance service.
The load values as following were confirmed by tension tests at:
Formwork Sleeve V2A DW15
standard
Mat. No.. 1.4301
length ca. 14,0 cms
perm. tensile load:
. Fh 26,2 kN at 8 kN/mm2;
Formwork Sleeve V2A DW15 "A r i e s "
Mat.No. 1.4301
length ca. 14,0 cms
perm. tensile load:
Fh 54 kN ati 30 kN/mm2;

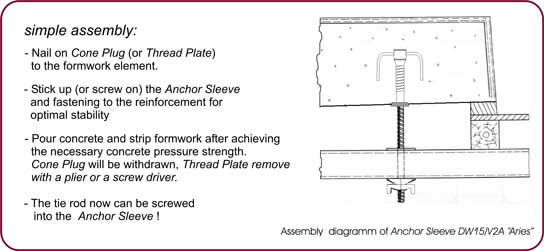

Assembly Plugs - depending on the application of the sleeve
Fixation Plug PVC only for Sleeve "long"
nail on the formwork panel
Cone Plug PVC only for Sleeve "short"
nail on the formwork unit
for concrete cover 12 mms, requested e.g. at exposed concrete components - reusable -
Thread Plate PVC also for Sleeve "short" only
nail on wooden formwork panels
or glue on steel formwork sheets
- reusable -
Fixation Cone 45° PE
for installing our sleeves DW15 and DW20 at 45°-angularity
Sealing Plug PVC
for sleeves DW15
For exposed concrete construction or required water tightness:
Prefix Cone PE-50 concrete cover 50 mms - reusable -
application for our sleeves DW15 and DW20
Fixation Plug - reusable -
fastening for Prefix Cone PE-50
Concrete-Cone
for sealing the opening when using Prefix Cone
prefabricated concrete product bond in with available
glue products
